CORE-series DC30 Charger Installation Guide

Modified on Wed, 29 Oct at 9:09 AM

Morek CORE-series DC30

Smart, Compact, and Ready for Every Destination

The Morek EVC CORE-series DC30 is a compact and intelligent fast-charging solution designed to power battery electric vehicles (BEVs) and plug-in hybrid electric vehicles (PHEVs) efficiently.

Engineered for versatility, it’s the perfect choice for public and private locations — including commercial parking areas, fleet depots, workplaces, residential complexes, and highway rest stops.

Built with flexibility in mind, the DC30 offers easy wall or pedestal installation through modular plug-in power units, ensuring a cost-effective setup for any environment. Its robust design is waterproof and dustproof, making it ideal for long-term outdoor use even in demanding conditions.

Equipped with a 7-inch LED-backlit touchscreen, the DC30 provides a clear and intuitive user interface for smooth operation. The charger’s smart network connectivity allows integration with remote management platforms, giving drivers real-time access to information such as station availability, charging progress, and billing data.

With its mid-range 30 kW DC output, the CORE-series bridges the gap between standard 22 kW AC chargers and high-power DC units — delivering reliable performance where fast, yet economical charging is required.

Offering EU-wide interoperability, advanced safety certifications, and an attractive price-to-performance ratio, the Morek CORE-series DC30 stands out as the ideal entry-level DC charger for businesses, fleets, and property owners looking to expand their EV infrastructure efficiently and affordably.

Safety Instructions

Read and observe the following safety precautions before you install, service or user your Morek charging station. The installer must ensure that the charging station is installed in accordance with the relevant country-specific standards and local regulations.

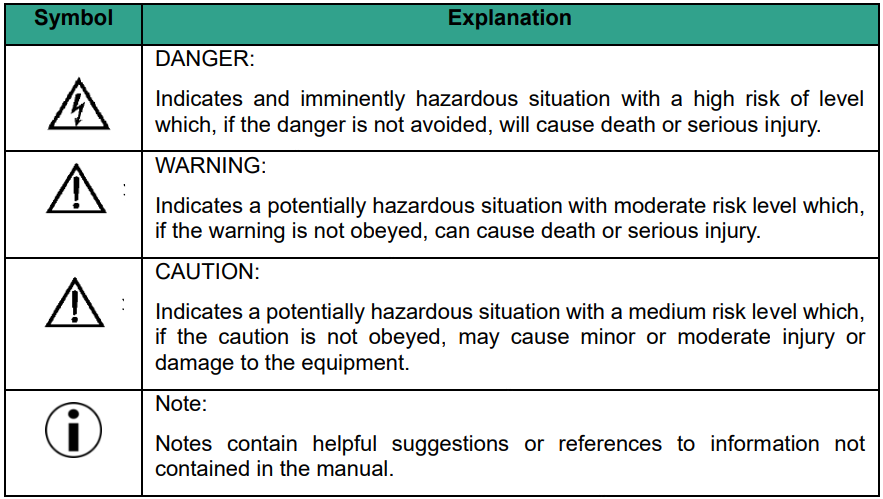

Symbols used in this manual

Save these instructions

This manual contains important instructions for Morek CORE-series DC30kW charging station that need to be followed during installation, operation and maintenance of the unit.

WARNING: Risk of electric shock

Switch off input power to your charging station before you install or service the charging station. Keep the power off until the charging station is fully installed with its covers secured.
In the event of danger and/or an accident, a certified electrician must immediately disconnect the charging station from the electrical supply.
Do not operate the charging station if it is physically damaged or if the charging cable has cracks, excessive wear, or other visible damage. Contact Morek or your distributor if you suspect that the charging station is damaged.
Do not direct powerful jets of water toward or onto the charging station. Never operate it with wet hands. Do not put the EV charging plug into any liquid.
Do not place fingers or other objects inside the charging port or plug port.
Read the user instructions delivered with your Morek charging station and the User Manual for your electric vehicle before charging.

WARNING: Accumulation of gases

Some electric vehicles require an external ventilation system to prevent the accumulation of hazardous or explosive gases when charging indoors. Refer to your vehicle User Manual to check if your vehicle releases hazardous or explosive gases when charging.

CAUTION

Use this charging station to charge compatible electric vehicles only. Refer to your vehicle user manual to check if your vehicle is compatible.
This charging station may affect implanted electronic medical devices. Before you charge your vehicle, consult the supplier of the electronic medical device to determine if it can be affected by charging effects.
This charging station contains no user-serviceable parts. The user must not attempt to service, repair, or relocate the charging station. Contact Morek or your distributor for more information.
Make sure that the charging cable cannot be damaged (kinked, jammed, or driven over) and that the plug(s) do not come into contact with heat sources, dirt, or water.
Only use the charging station under the specified operating conditions.
Do not use explosives or flammable substances near the charging station.
If you are unsure about how to use a charging station, ask for help.
Do not allow children to operate a charging station. Adult supervision is required when children are near a charging station that is in use.
Adapters, conversion adapters, or cord extensions must never be used on this charging station.

Charging station safety precautions

CAUTION:

Do not open the charging station doors when:

It is raining, snowing.
The charging station is exposed to direct sunlight.
Weather conditions are wet (fog, ...).

Failure to follow these instructions can result in danger to the user and may void the warranty and liability.

This device contains components that can be damaged or destroyed by electrostatic discharge.

When handling this device, observe the necessary safety measures regarding electrostatic discharge (ESD) according to EN61340-5-1 and 61340-5-2.
This charging station must be stored and transported according to the specifications described in this manual.
Even if the charging station can be used by a non-qualified person, the charging station may only be installed, commissioned, serviced, relocated, repaired and decommissioned by qualified persons. Failure to follow these instructions can result in danger to the user and may void the warranty and liability.
Modification of the product is prohibited. It can result in danger to the user and may void the warranty and liability.
This charging station contains no user-serviceable parts. The user must not attempt to service, repair, or relocate the charging station. Contact Morek or your distributor for more information.
Make sure that the charging cable cannot be damaged (kinked, jammed, or driven over) and that the plug(s) do not come into contact with heat sources, dirt, or water.
Only use the charging station under the specified operating conditions.
Do not use explosives or flammable substances near the charging station.
Do not use peripherals, consumables or accessories that do not conform or are unsuitable for the charging station.
Do not use anti-graffiti treatment that may damage the charging station.
Do not modify the features of the charging station (data settings, cabling, …).
This charging station must be protected against animals, object intrusion or water ingress even if they do not alter charging station operation.

Failure to follow these instructions will result in damage to the charging station.

Product Specification -> click here

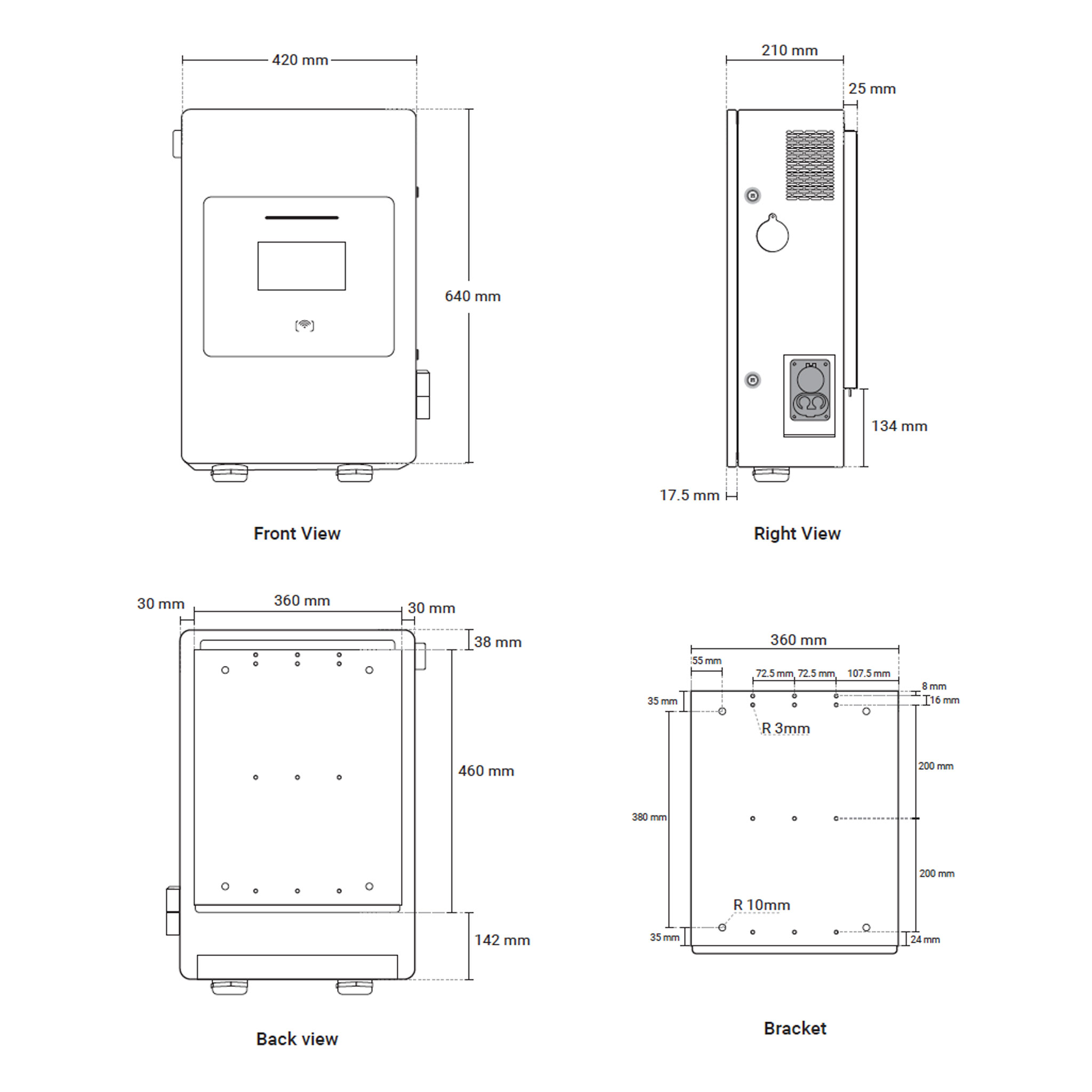

Product Dimensions

Installation Instruction

Open the charger box and remove the surrounding protective boards to access the product. Please note that the charger is heavy — it is strongly recommended to use a lifting tool both for removing it from the box and for positioning it at the installation site.

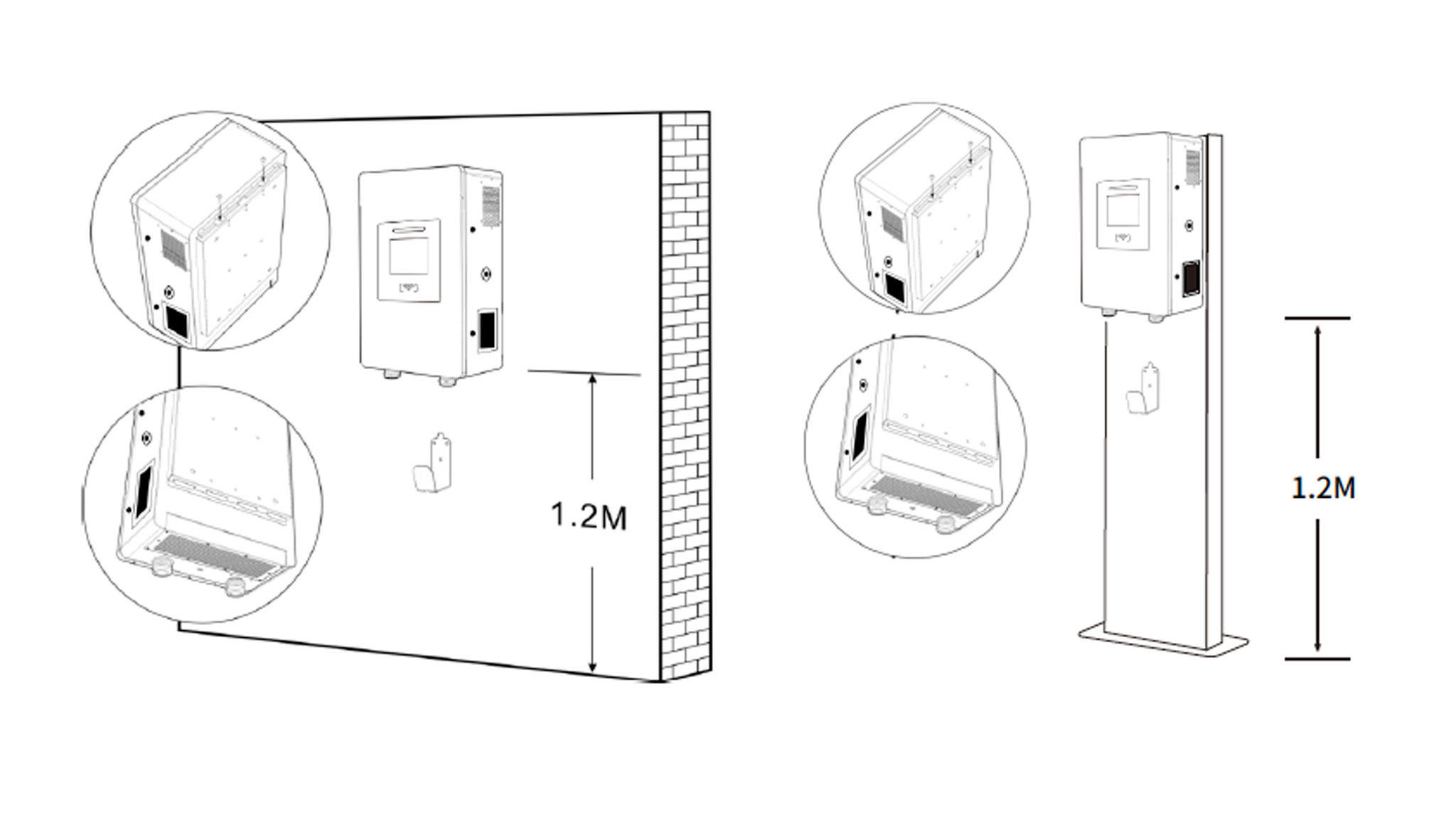

Mounting on the wall or pedestal

Position the wall-mount bracket at a height between 600 mm and 1.2 m from the floor.
Secure the bracket using four expansion screws.
Align the four screws on the back of the charger with the holes on the bracket, and slide the charger into place.
Fasten two M6 screws at the bottom of the charger to secure it to the bracket.
The hook-shaped holders can be used for cable management or removed if not needed.

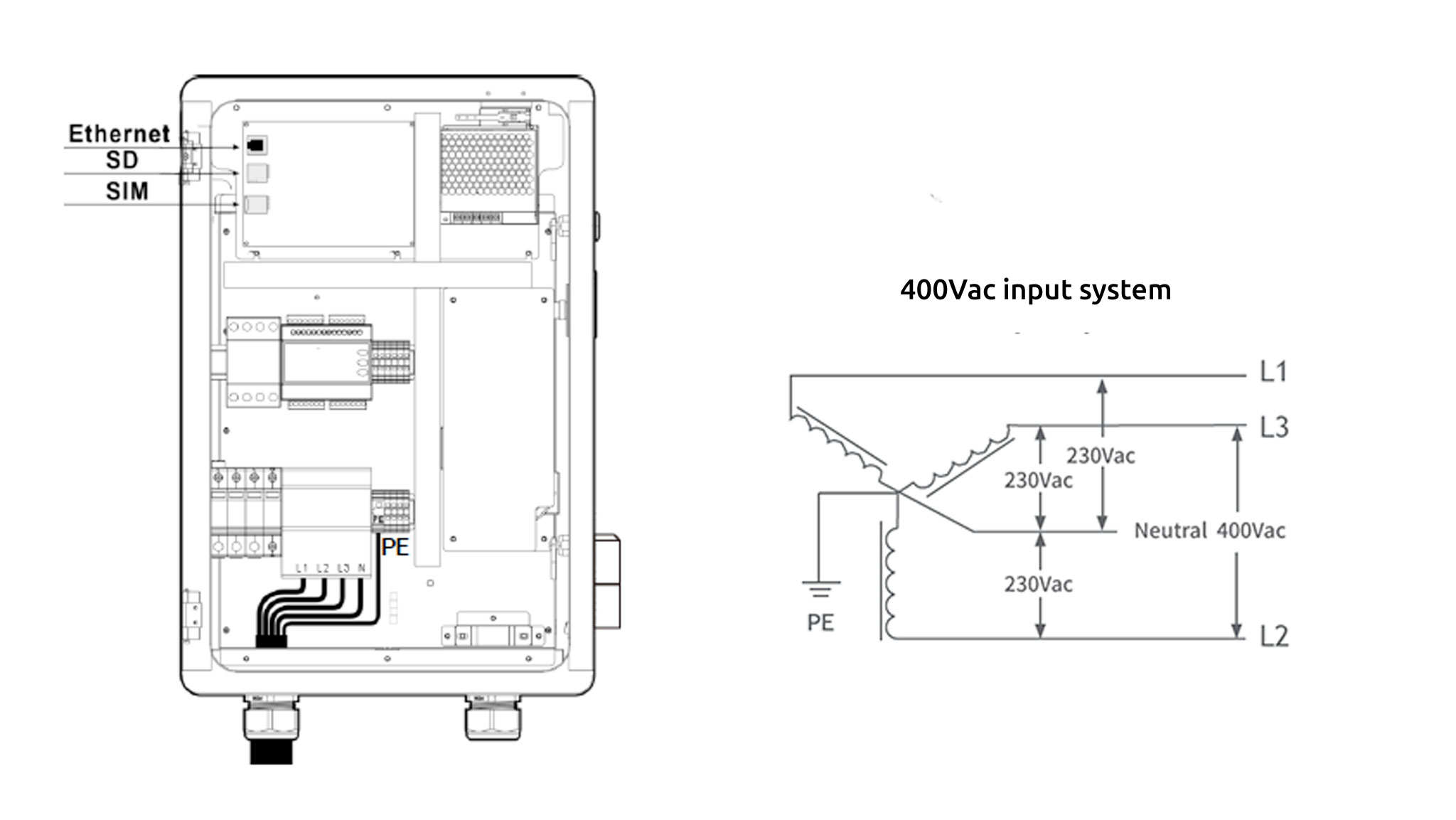

Prepare the cable and use standardized cable only. For AC cable, we suggest using cable size is 3*25+2*16mm². AC cable size depends on system configuration and local regulations. Refer to electrical installation drawings or discuss with electrical designer for further information.
